The Swimming Current Machine, as a remarkable breakthrough in modern swimming technology, offers swimmers a completely new swimming experience.
A swimming current machine, also known as a swim current generator or swim jet, is a device
designed to provide a continuous flow of water for swimming or aquatic exercise.
The AUPOOL swim current machine is capable of simulating different water flow speeds and
directions, helping swimmers practice various skills and adapt to different water flow
conditions. Swimmers can swim against this current, effectively allowing them to swim in
place without having to turn around at the end of a pool, as it is an endless pool swim
machine
Swimming current machines are popular for exercise, rehabilitation, and training purposes,
as they provide a controlled environment for swimming and aquatic workouts. They are often
used by swimmers looking to improve stroke technique, endurance, or cardiovascular health.
Additionally, they are commonly found in gyms, rehabilitation centers, and private
residences.
The swimming machine is a counter-current machine which produces a powerful evastream of water in pool. The power box provides low voltage DC power to drive the turbine. The turbine is controlled by the control panel.
The AUPOOL Swimming Current Machine home version offers a controlled environment, perfect for swimming and aquatic workouts, making it a popular choice for exercise, rehabilitation, and training.
The Athletes Pro version shares similar features with the home edition but with increased power, catering to swimmers with higher aspirations. Whether it's intense swim training or the desire for greater resistance to engage multiple muscle groups for overall strength and endurance, the Athletes Pro model delivers. However, rest assured, the functionalities of the home edition remain intact and adjustable, right?
The AUPOOL Swimming Current Machine provides an expansive swimming space within the pool, as its design allows swimmers to swim for extended periods within a relatively small area without the need for turning around, overcoming the limitations of pool size. This offers swimmers greater convenience and freedom, enabling them to enjoy continuous swimming challenges and excitement
The AUPOOL Swimming Current Machine offers adjustable features to cater to individual swimmers. Swimmers can adjust the flow speed and intensity to meet their training needs, whether they desire high-intensity butterfly strokes, sprint training, or low-intensity leisurely swimming. The AUPOOL Swimming Current Machine can accommodate the diverse requirements of different swimmers

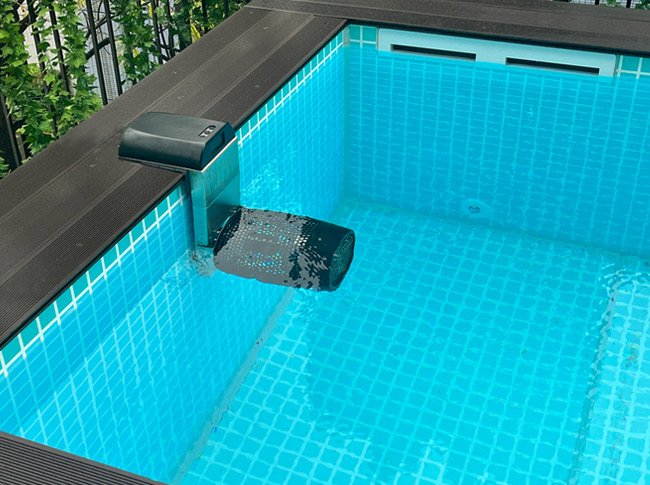

The AUPOOL pool counter-current system is compatible with various types of swimming pools. It only requires a wall where the base can be securely mounted to instantly transform your pool, providing you with a variety of water-based activity options including stationary swimming, professional training, water-based entertainment, and rehabilitation therapy.

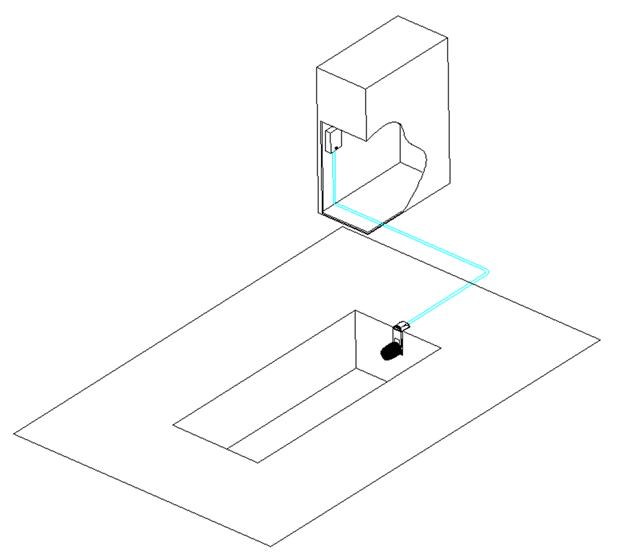

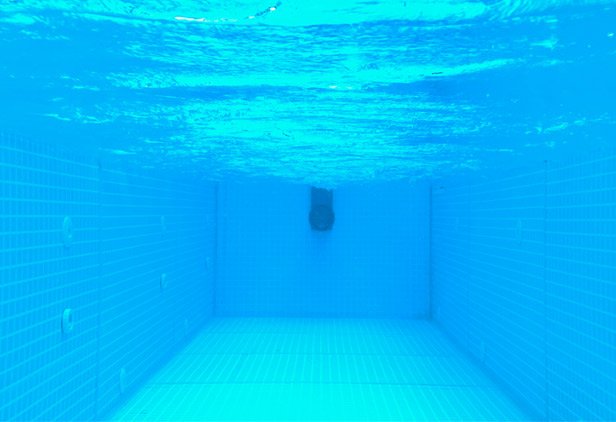

Before delving into the installation of the pool counter-current system, it's essential to understand the importance of symmetrical placement. For your optimal swimming experience, careful consideration of the positioning of the counter-current system during the design phase is crucial, taking into account elements such as the location of stairs and platforms. Such "obstacles" can lead to a less enjoyable swimming experience. For the best water flow, the swim machine should be placed in the middle of the pool wall in a symmetrically designed pool.

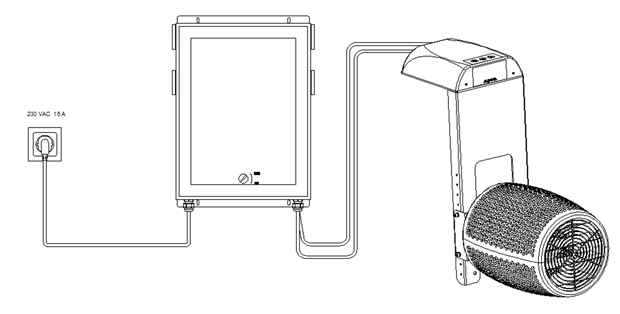

AUPOOL pool counter-current system consists of three parts: the power box, control panel, and turbine.
A. Power box
The power box of the swim machine is placed in the technical area near the swimming
pool (in a dry and non-condensing environment).The power box is equipped with an
on/off switch, which must be turned off after use.
B. Control panel

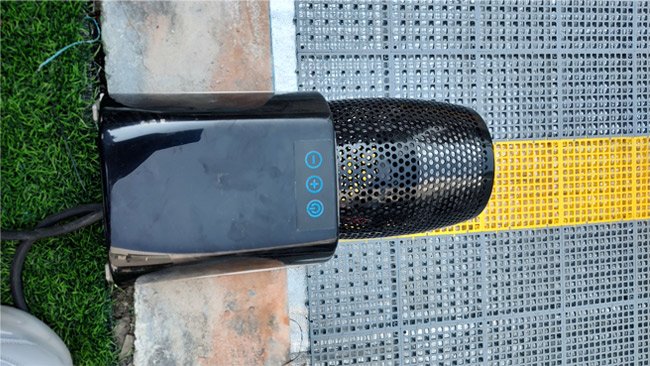

Simply press the button on the control panel to start/stop or adjust the speed of
the swim machine exercise.
C. Turbine
Water is drawn in through the grids around the machine. Always ensure that the
intake components are completely unobstructed. Under no circumstances should these
parts of the machine be closed off or blocked.

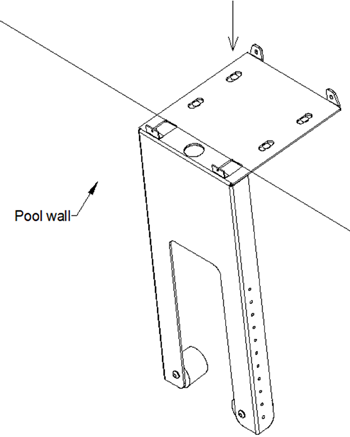

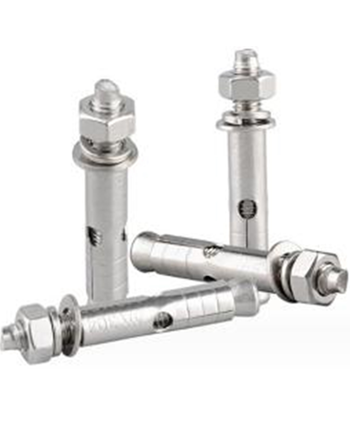

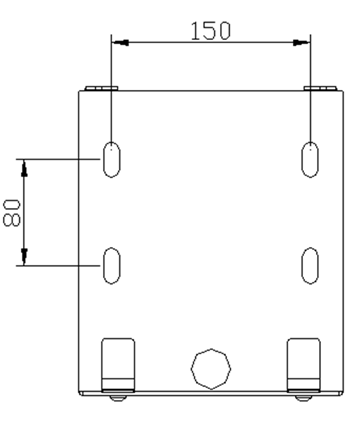

Hang the mounting bracket in the center of the symmetrically designed pool wall, and mark the positions of the expansion bolts according to the fixed holes on the mounting bracket. Drill four appropriately sized holes in the pool wall and then hammer the expansion bolts into the holes.
Your swimming experience depends on the correct positioning of the turbine unit. By placing the turbine at the right height, you can ensure that the water flow reaches the chest level of the swimmer.
We recommend spacing the center of the turbine unit from the waterline by approximately 250 millimeters. The recommended upward angle of the turbine unit is about 5 degrees.
With these settings, the water jet will break the water surface at a speed of approximately 1.5 to 2 meters behind the turbine outlet. If the angle of the turbine unit is too steep, the water surface will be rough. If the angle of the turbine unit is too flat or even downward, the perceived performance will be significantly reduced. If the turbine unit is clearly too low, raising it higher can improve perceived performance.

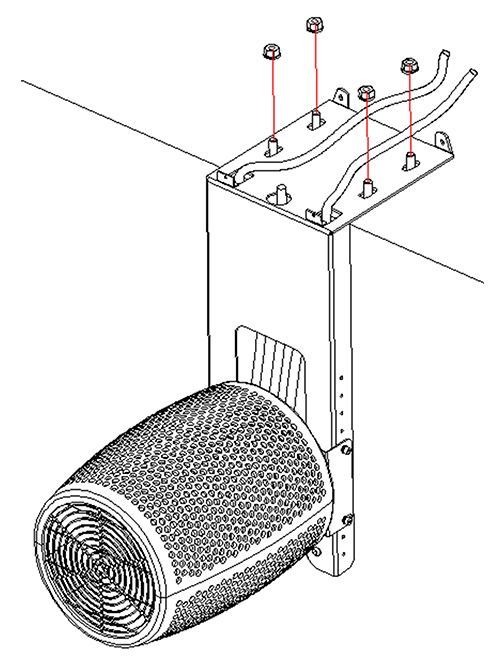

Secure the turbine unit to the appropriate screw holes on the mounting bracket as needed. The turbine unit can be adjusted up to 0-5 degrees.
Thread each of the three cables from the turbine unit through the holes in the mounting bracket, secure the mounting bracket to the expansion bolts, and lock it into place.

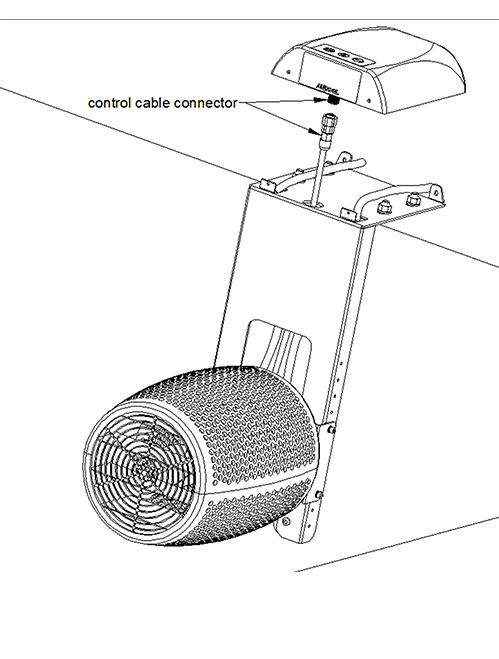

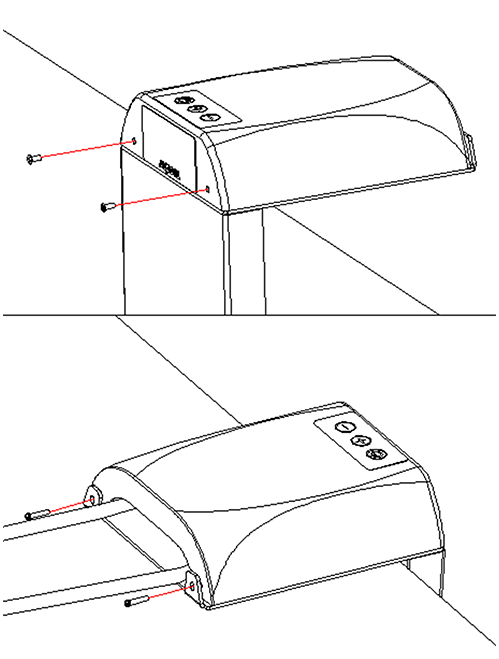

Connect the waterproof cable connector from the turbine unit to the control panel and use screws to secure the control panel to the mounting bracket.
Lock the cable connectors of the positive and negative cables from the turbine unit onto the power box. Secure the positive and negative cables from the turbine unit onto the positive and negative poles of the power source (ensure tight locking). Once this step is completed, the installation work is complete, and we're ready to start!
Before starting the machine, check all the lines for damage and ensure that the electrical connections are secure!
The suction is done from the side of the turbine unit. It must be ensured that the suction slot is never blocked to ensure the flow of water.

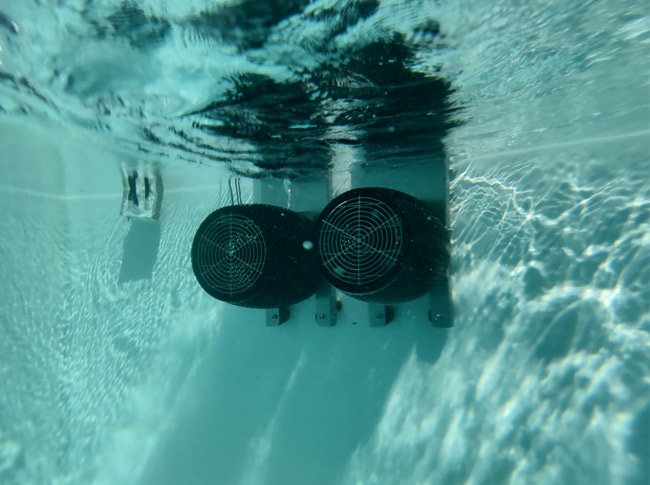

The turbine unit can only operate underwater. Before use, be sure to completely submerge the turbine unit. Failure to submerge the turbine unit during use may cause serious and permanent damage to the turbine unit.
Insert the input line of the power box into the socket and use the rotating switch on the front of the power box to turn on the swim machine! The control panel will light up
Embark on an exhilarating aquatic journey with the AUPOOL Swimming Current Machine, offering swimmers a whole new level of swimming experience and challenges. Paired with features like temperature control systems and underwater bikes, it creates the perfect environment for healthy swimming, anytime and anywhere. Dive into the excitement, indulge in the joy of swimming, enhance your skills, and maintain a fit and healthy body. Join forces with the AUPOOL Swimming Current Machine and explore new frontiers in the world of swimming.
Before The installation bracket and motor of the AUPOOL swim machine are made of stainless steel alloy commonly used in swimming pools.
It is essential to select a cleaner based on the intended use and consider the material, surface, or equipment to avoid damage and corrosion when substances enter the pool water. In particular, solid substances must be dissolved before addition.
Under no circumstances should cleaners containing hydrochloric acid be used on stainless steel.
The weight after packaging is 22kg.
1 year
15~20 days
EXW, Express delivery by air.
